Felder AD741 410mm Planer / Thicknesser

NSW,QLD,VIC,WA

Felder AD741 410mm Planer / Thicknesser :      Ask for Price

  • Specifications
    Condition:
    New
    Type of Sale:
    OEM
    No. in Stock
    1
    Year:
    2017
    Make:
    Felder
    Model:
    AD741
    Description

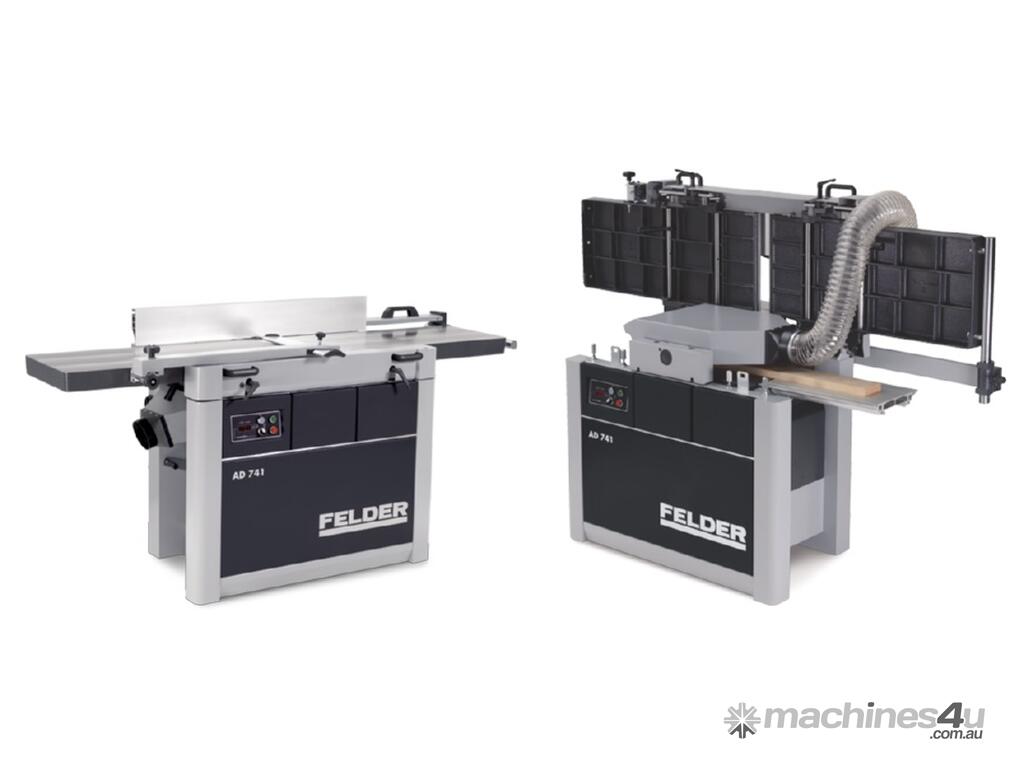

    Felder AD741 410mm Planer and Thicknesser

    (now also available with Silent Power Spiral Cutter Block)

    Technical details:

    Motor power: 4.0 HP (5.5 hp, 7.5 hp & 10 hp 3 Phase or in 4HP single phase optional)
    Surface planing width: 410mm
    Maximum depth of cut: 5 mm
    Thicknessing width 406mm
    4-254mm depth
    2-knife or 4-knife Felder-system cutter block or with the popular Felder Spiral head
    sping loaded infeed and outfeed roller 6 or 12meter per minute
    Anodised Surface planer fence 1150 mm

    The tried and tested planer/thicknesser from the Felder 700 series is renowned for its excellent planing results and reliability. In the new design the AD 741 offers an unbeatable price/performance ratio for the professional woodworker

    Thicknessing accuracy to one tenth of a millimeter (0.1mm) with the use of the handwheel and its integrated digital display.

    Max. Thicknessing height 254 mm.

    Popular optional electronic height adjustment for fast and quick set up 0.1mm

    Perfect planing technology
    All our surface-thickness-planers are equipped with 2 spring-loaded (infeed/outfeed) pressure bars. To avoid vibration of the work piece during thicknessing.

    Dual-lifting planer tables
    It is easy to change quickly from the planing to the thicknessing function on your machine.

    2-stage gear
    Simple choice for the power feeder speeds of 6 m/min. and 12 m/min.

    Dust extraction hood
    Heavy chip loads are no problem for the chip extraction hood due to its efficient design and large dimension.

    Electric thicknesser table height adjustment “Power-Drive”
    Turn the control switch for quick adjustment and then fine tune with the push of a button. The LED display clearly shows the thicknessing table position.

    Adjust the depth of cut.
    The chip removal can be adjusted continuously to up to 5 mm. The magnifying glass guarantees accurate reading of the scale.

    Professional planer fence
    The exceptional space-saving design of the planer fence makes it possible to place your surface – thickness planer directly against the workshop wall and still use the full planing width.

    Professional planer fence
    The planer fence may be tilted to any angle between 90° and 45°. End stops are placed at 90° and 45°.

    A horizontal mortiser can be mounted on the planer side.

    Tool less knife adjustment with an accuracy of 0.1 mm. This is a ­standard feature of your Felder machine.

    The Felder-system cutterblock: 2- or 4-knife cutterblock, Quick and effortless knife change, Self aligning knives are perfectly set each and every time! , No resin buildup on clamping bolts, Extremely quiet operation due to the enclosed design and excellent durability of knife edges
