Felder RL125 Dust Extractor - SINGLE PHASE

NSW,QLD,VIC,WA

Felder RL125 Dust Extractor - SINGLE PHASE :      Ask for Price

  • Specifications
    Condition:
    New
    Type of Sale:
    Ex-factory
    Year:
    2014
    Make:
    Felder
    Model:
    RL125
    Description

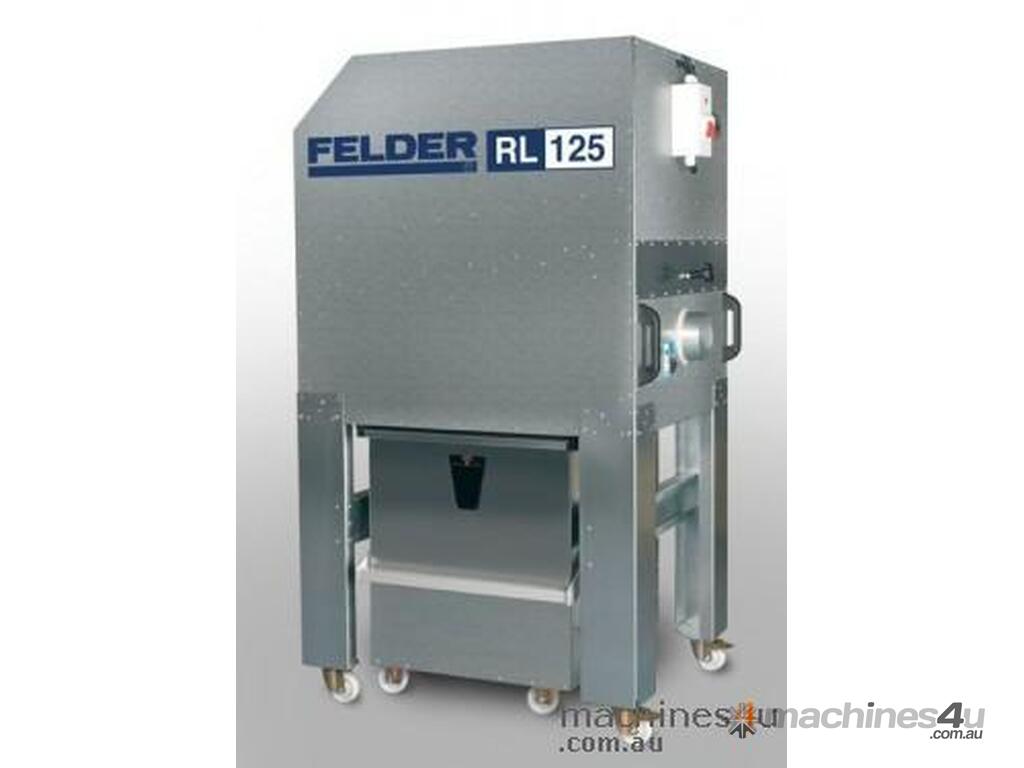

    FELDER RL-125 Clean Air Dust Extraction Unit

    Amazing Clean Air Dust Extraction Systems with built in filtering system

    Certified for internal use and returns clean, filtered air to the workshop.

    Standard Feautures:

    Manual Filter Cleaner
    Mobile - mounted on lockable castors
    Accoustic Damper Availble - option
    Motor: 3 x 400V 4 HP

    Max. airflow m³/h 1900
    Nominal air flow capacity m³/h 1150
    Min. air flow capacity 20 m/sec. m³/h 884
    Static pressure Pa 1350
    Static pressure (at machine) Pa 1850
    Dimensions mm (L x W x H) 940 x 780 x 1600
    Extraction connector Ø in mm 125
    Dust emission quality mg/m³ < 0,1
    Filter surface area m² 5
    Acoustic pressure (with sound absorber) dB 80
    Chip volume litres 200
    Weight, kg (with standard equipment) 210 KG

    WE OFFER THE SERVICE TO DESIGN YOUR DUST EXTRACTION SYSTEM AND SUPPLY/INSTALL PIPING TO SUIT

    the price DOES NOT included any piping.
